Gumstix Overo review

Based on the interest and number of embedded modules currently available, it appears that the OMAP3 CPU from TI will be very popular in the general purpose embedded Linux market.  One of the OMAP3 modules available is the Overo from Gumstix.  As the company name suggests, this module looks about like a stick of gum, but smaller, as shown in the photo below.  The Gumstix module provides a lot of functionality in a very small package.  It is reasonably priced, and is an excellent way to quickly create a product that has advanced functionality such as a high powered CPU (OMAP3), high speed USB, DSP, 3-D graphics acceleration, etc.  For an example of the OMAP3 performance compared to previous generations of ARM processors, see this article.

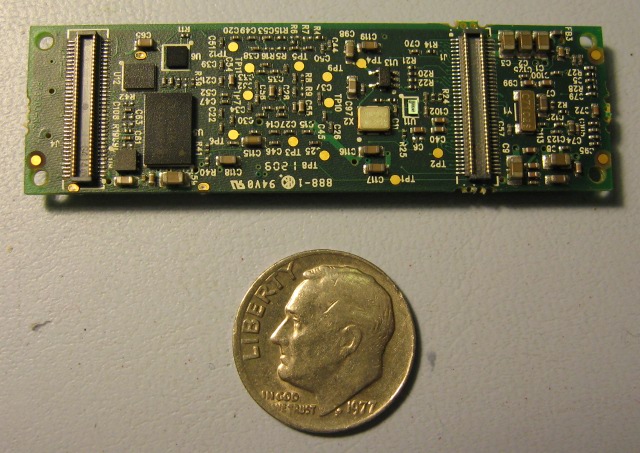

Overo size comparison to a US dime
Overo size comparison to a US dime

The module contains all the core components, and can then be attached to a custom baseboard using the two high density connectors shown in the above photo.  There are 70 signals on each of the two connectors.  BEC provides a spreadsheet of the Overo signals to assist in designing a custom baseboard.

Due to the high level of component integration, the Overo has very few components on the module.  As shown in the below photo, there are really only 3 major visible components.  The flash and RAM is stacked on top of the CPU.  The PMIC contains all the required power managment circuitry, as well as Audio and USB interfacing functionality.

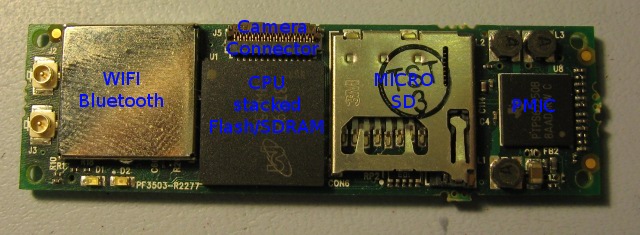

Major components on the Gumstix Overo
Major components on the Gumstix Overo

The Overo module must be used with a baseboard.  Gumstix provides several development baseboards.  For production, a custom baseboard is typically created.  The Gumstix baseboards are reasonable cost, so they could be used for prototyping or low volume production if they have the required functionality.  Below is a photo of the Summit baseboard that provides DVI video out, audio, USB host and OTG, and an expansion connector with a number of signals.

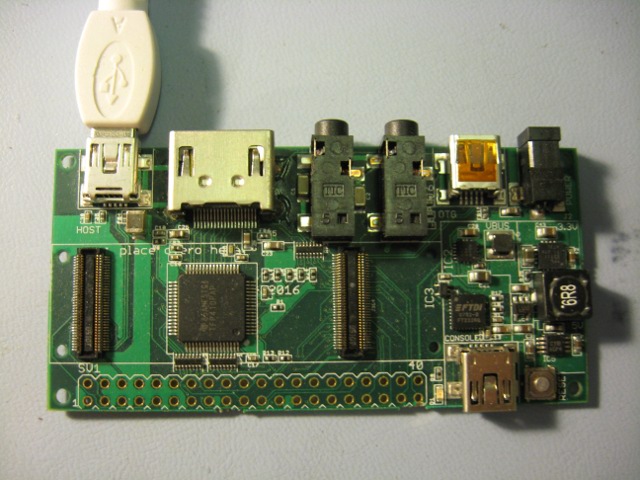

Gumstix Summit baseboard (overo is not installed)
Gumstix Summit baseboard (overo is not installed)

Below is the Palo baseboard from Gumstix that can be used to interface with a LCD display.  The Palo board contains a resistive touch screen controller, and circuitry required to interface with a LCD.

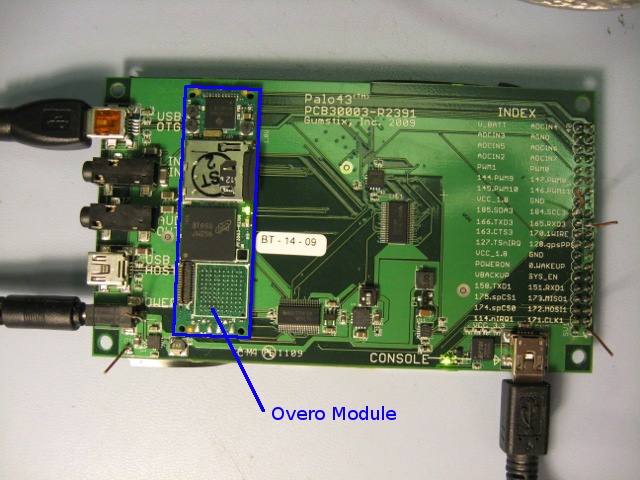

Palo baseboard with Overo installed
Palo baseboard with Overo installed

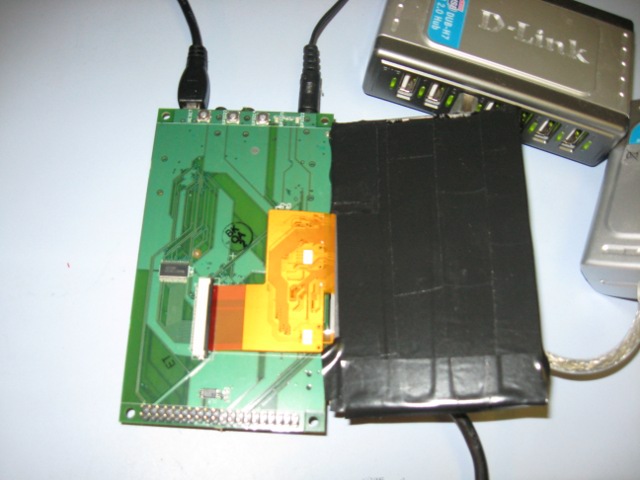

Display connected to Palo baseboard.  Note the tape applied to the display to keep from shorting to components on baseboard.
Display connected to Palo baseboard. Note the tape applied to the display to keep from shorting to components on baseboard.

The Overo does not include an Ethernet controller, so you typically use a USB-Ethernet adapter for development.  Below shows a typical development setup.

Typical USB-Ethernet connection through a USB hub.
Typical USB-Ethernet connection through a USB hub.

One of the things about the OMAP3 that makes it very attractive for embedded development is the amount of software support, and the number of development and production solutions available.  The OMAP3 is very well supported by the OpenEmbedded project, and TI is very active in making contributions to various open source projects.  This greatly increases the quality and availability of advanced software functionality needed to support a complex system like the OMAP3.

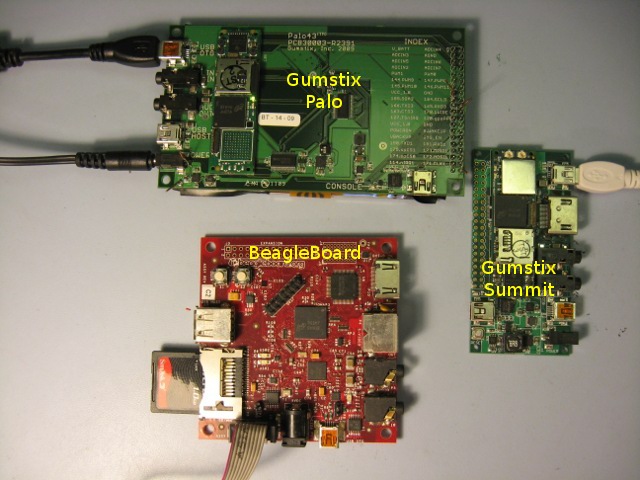

Size comparison of several OMAP3 systems
Size comparison of several OMAP3 systems

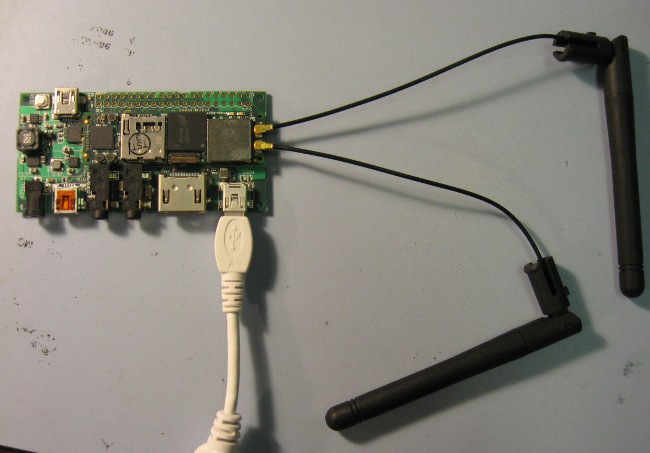

WIFI and BT antennas connected to Overo module
WIFI and BT antennas connected to Overo module

There are many options for software development with the OMAP3 systems.  Below is a photo of a very simple Qt application.  GTK+ and Enlightenment are other popular GUI toolkits.  With 256MB of both flash and RAM, this is more than enough memory for most embedded applications, and provides plenty of headroom for adding features for future product revisions.  The Overo has the CPU processing capability to run advanced GUI applications with 3-D affects, as well as advanced web application frameworks like web2py that previous generations of ARM CPUs could not effectively run.

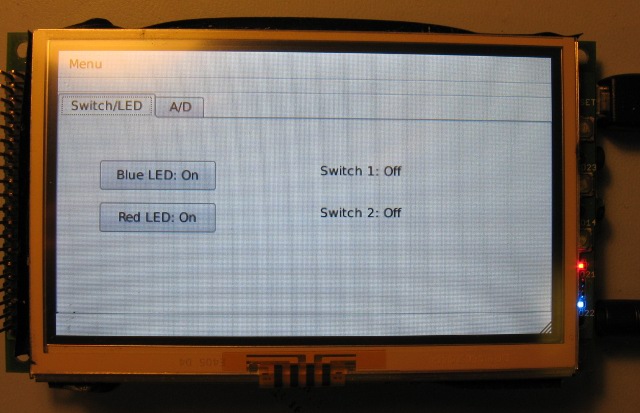

A simple Qt application that controls LEDs and reads user switch
A simple Qt application that controls LEDs and reads user switch

The Gumstix Overo provides an excellent value for developing advanced products.  Especially for low volume products, when you compare the effort and time required to develop a full custom OMAP3 solution versus a simple Overo baseboard, using a module can provide significant advantages in terms of time to market, and development cost.

Categories
Uncategorized

OMAP3 Resume Timing

One of the most common power management modes for ARM processors is the suspend mode.  In this mode, peripherals are shut down when possible, the SDRAM is put into self-refresh, and the CPU is placed in a low power mode.  A useful bit of information is to know how soon the system can respond to a resume (wake) event.

It turns out the answer to this question depends on where you want to do the work.  In the first test, I created a simple application that continuously toggled a GPIO.  This is an easy way to tell determine with a scope when the application was running.  I then measured the time between the wake event, and when this application signal started toggling.  It was a consistent 180ms.

For the next test I simply toggled a gpio in the omap3_pm_suspend() first thing after resume.  This tells me roughly how fast I can execute code in the kernel after a wake event.  This turned out to be 250uS.

So the good news is we can run kernel code very quickly after a resume event (250uS), but it currently takes a long time until user space processes start running again (180mS).  The 180ms can likely be reduced with some work, but this at least gives us a baseline.  180ms is fairly quick from a human perspective (seems pretty much instant), but for industrial devices that are responding to real-world events, then 180mS can be a long time.

Categories
Uncategorized

Gumstix Overo Pinout Spreadsheet updated

The Gumstix Overo Pinout Spreadsheet has been updated with the Palo board connector pinouts, and a few mistakes have been fixed.

overo_pinout2

overo_pinout

Categories
Uncategorized

Intel Atom vs TI OMAP3

As we look at new projects, both the Intel Atom and the TI OMAP3 processors generate considerable interest.  As we have already shown, the OMAP3 does offer a considerable performance improvement over earlier generations of ARM CPUs.  The following video I found on YouTube shows a similar comparison of a OMAP3 and Atom systems rendering web pages:

As one would expect, the Atom does perform better (about 14%), but considering the power differences, the OMAP does surprisingly well.  It is also unknown in this demo if the screen size would make a significant difference in the results.  Like most things, the choice depends on the application, and no two applications are the same, and each solution has advantages.  Some things to think about:

  1. Power: OMAP3 platform consumes on the order of <1-2W while the Atom is more in the range of 2-5W.
  2. High Speed I/O Interfaces: Atom supports PCI and PCI expansion interfaces where OMAP3 is limited to more special purpose user interfaces such as SD, Camera, Asynchronous bus, etc.  Both Atom and OMAP support High Speed USB.
  3. Packaging: OMAP3 packaging is very aggressive with the stacked Package-on-Package.  To get an idea how much space an OMAP3 solution takes, check out the module from Gumstix.  There are basically only two chips in the system: the OMAP3+stacked RAM/Flash and a power management+I/O chip.  This is very high integration!
  4. Module availability: for many embedded systems with volumes in the 1000’s of units per year, a module solution is very attractive compared to a full custom design.  This drastically reduces the engineering effort and time to market.  A sampling of the modules available include:
  5. Software support:  TI and the open source community have done a remarkable job of supporting the OMAP3 with the BeagleBoard effort.  Gumstix maintains open source software for their devices, and has a very active development community.  Intel also has invested significantly in software with their Moblin project.  Other factors to consider is the boot software (bootloader vs BIOS, is it open?), are there 3D graphics libraries available, etc.
  6. Multimedia processing:  The OMAP3 is available with an on-chip DSP.  Intel has traditionally offered extensions for multimedia processing such as SIMD.

Tradeoffs!

Categories
Uncategorized

GTK performance on PXA270 vs. OMAP3

Several of my customers have built applications using the GTK+ tookit.  While GTK+ works fairly well for what we have done, I have been wondering how the performance compares on the new Omap3 processors from TI. As we are evaluating the OMAP3 for several projects, I did a simple comparison with an existing application.  Below is a video that shows a fairly complex application running on both a PXA270, and a OMAP3530.  While the PXA270 gets the job done, the result on the OMAP3 is much more pleasing.  With that advent of a OMAP3 module available for $117 in volume, it seems like the OMAP3 will be a popular solution for upcoming Embedded Linux projects.

Categories
Uncategorized

Gumstix Overo Connector Spreadsheet

One of the first things I do when designing a system based on a processor module is create a spreadsheet listing all the connector I/O.  This is the easiest way I’ve found to make sure nothing gets missed.  My first pass at a I/O spreadsheet for the Gumstix Overo is available at:

http://redmine.bec-systems.com/bec/documents/1
